Circulation sand removal system

QSHPF1502

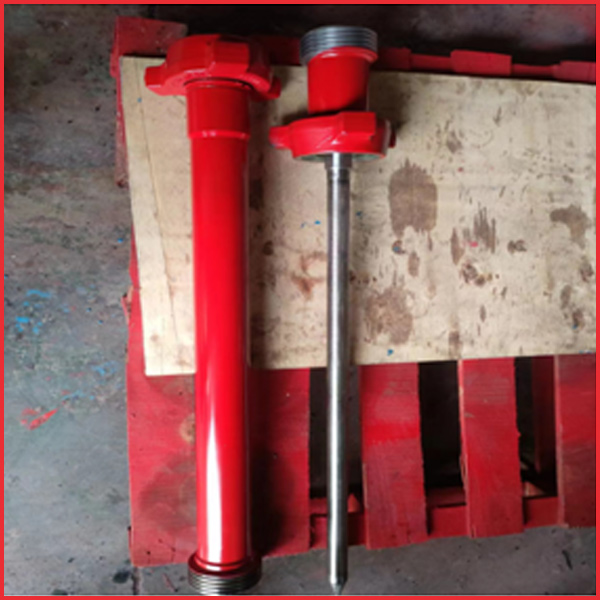

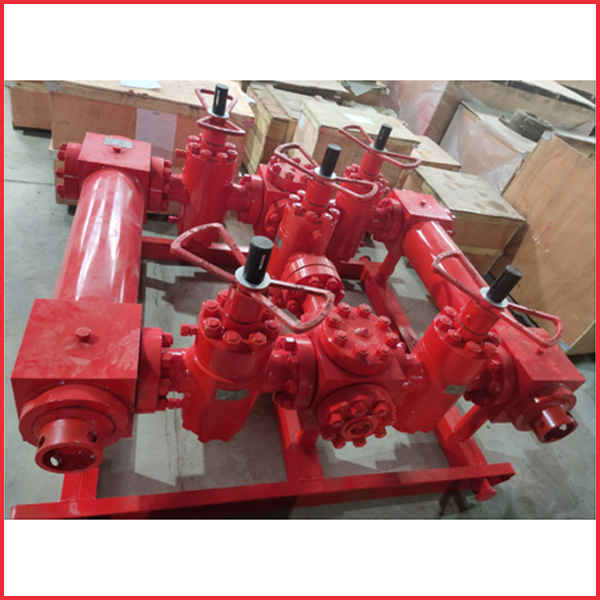

High Pressure Filter
Pressure:105MPa
Connection:2”-1502
vibrating screen tank
QSHPVST01
Screen Number:2
Flow:60m³/h

This equipment consists of a high-pressure filter assembly and a vibrating screen sand removal tank. The flow out liquid first enters the vibrating screen sand removal tank,

separates most of the solid particles, and then passes through the high-pressure filter before entering the well.

This can minimize the damage to tools and wellbore caused by circulating liquid solid particles entering the well
